| Sizes Available | 1950mm*350mm*380mm 1950mm*380mm*410mm |
| Tier | 3 – 4 tiers |
| Rearing Quantity / House | >10,000 birds |
| Applicable Farm | Medium Scale Layer Farm |
| Material | International Q235 steel. |
| Life Time | 15 – 20 Years |
| Certificate | ISO9001, CE, SONCAP, PVOC |
Send us email
info@livichickencage.comCall us/WhatsApp

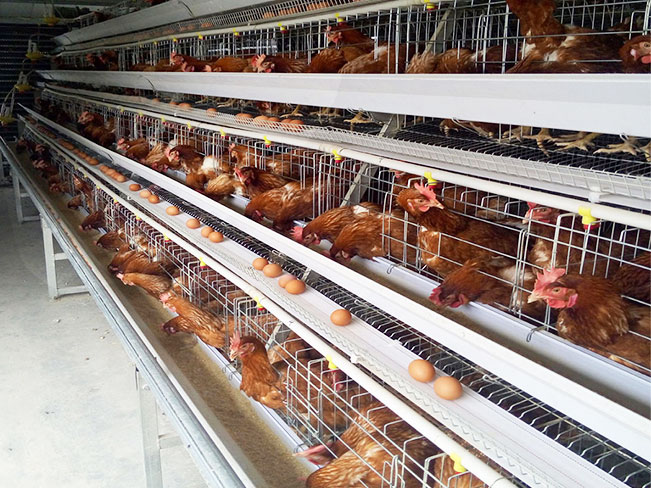

+86 173 1975 0880● A type layer chicken cage comes from its A-shaped structure design. It is widely used in small and medium-sized poultry farms. Compared with the H-Type battery cage, it is easier to install and operate.
● A-type layer battery chicken cage system includes battery cage system, automatic feeder and water feeder, automatic egg collection system, automatic manure removal system, tunnel ventilation system, etc.
| Cage Type | Specification | Quantity/Set | Tier/Door | Bird/Door |
| A-Type Battery Layer Cage | 1950mm*350mm*380mm | 120 birds/Set | 4-tier 4-door | 3 birds/Door |
| 1950mm*450mm*410mm | 160 birds/Set | 4-tier 4-door | 4 birds/Door |
High quality accessories & chicken cage design will get better effect and lower maintenance cost.
Layer Chicken Cage Frame
1. Raw material: U-Shape Steel, which makes the cage frame stand more stable and durable.
2. Specification:35*35mm, thickness:2.0mm
3. International 3mm thick plate rack, U shape design. It can withstand 350-kilogram pressure. Plus double galvanized technique with a 15-20 years lifespan.
Layer Chicken Cage Mesh
1.Raw material: International Q235 steel, good elasticity,no deformation.
2.We do the welding first, then do the hot dipped galvanized treatment. Smooth and clean surface, with advantages of anti-corrosion, anti-acid and alkaline as well as anti-agingperformance. Durable to bear heavy broilers.
Layer Cage Feed Trough
1. Raw material: HMW-HDPE/Steel
2.White color (White one is the best quality. Green or Black one is Not good)
3.Big slope design to prevent feed waste: compared with the slope or middle design of other suppliers(8,9,10), Our 8,9,13cm design could avoid splashing once chicken eat.
Layer Chicken Cage Drinking Line
1. Raw material: 304 stainless steel, 5mm.
2. It has high abrasion resistance, never get corrosive, never leak water.
3. It’s not easy to get blocked and produce scale incrustation.
4. Quite simple to drink water once chicken touch it.
Safer Feeding Environment
1. Scientific 7° slope design of the bottom cage mesh can fully protect eggs from broken while rolling to the egg tray once laid.
2. Diameter of the bottom cage wire is 2.3mm, this is the best design for chicken and eggs .
Enough Layer Cage Space For Chickens
1. Sufficient movement area for chickens: around 437cm² -450cm² (Other suppliers do 380cm²~417cm²)
2. Making the broiler chickens have a comfortable living environment.
3. It will help increase meat broiler production, and reduce the chicken mortality.
Full Automatic Supporting System——automatic feeding,drinking, manure cleaning, egg collecting and control environment.

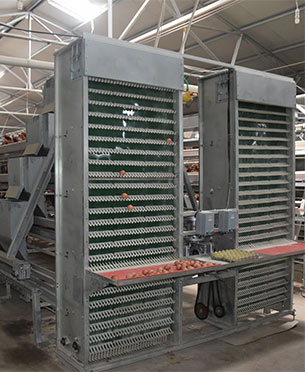

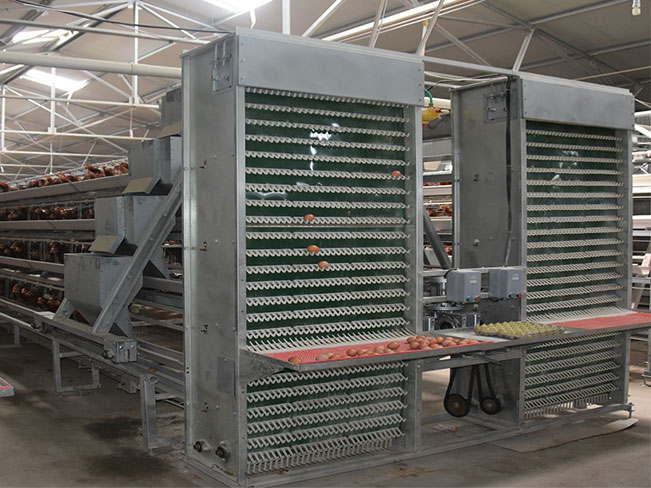

Automatic Egg Collection System
Ensuring less human contamination
and damage
Automatic Feeding System
Fully automated feed transportation
process everyday
Automatic Drinking System
Adjustable waterline for layers
Clean and stable water to Layer Farm

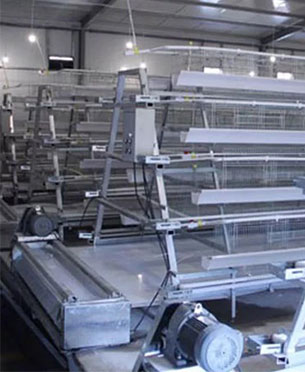

Automatic Manure Cleaning System
Daily thoroughly clean the feces
Better chicken shed environment
Enviroment Control System
keep indoor humidity
Aviod air pollution
Automatic Layer Chicken Farm
Saving manpower & resources
Realize intensive poultry farming
We provide not only poultry equipment, but also professional solutions.
Project Site: Pakistan
Type: H Type Layer Chicken Cage
Cage Model: 120-65-43H
Raising Quantity Per House: 50,000 Chickens
________________________________
"Reliable Company"
LIVI Machinery is a reliable Chinese company. They helped me a lot and I appreciate it.
★★★★★5.0Very Satisfied
Project Site: Zambia
Type: A Type Layer Chicken Cage
Cage Model: 195-45-41A
Raising Quantity Per House: 20,160 Chickens
________________________________
"Reliable Company"
I'm new in chicken farming business, LIVI provide me good quality cages & free chicken house design & detailed farm solutions to help me start with 20,000 birds.
★★★★★5.0Very Satisfied
Project Site: Zimbabwe
Type: Broiler Ground Feeding System
Raising Quantity Per House: 30,000 Chickens
________________________________
"Reliable Company"
LIVI recommended the deepp litter system for broilers for me based on my chicken house n my specific needs. After a period of use, I am very satisfied.
★★★★★5.0Very Satisfied
Project Site: Ghana
Type: H Type Broiler Chicken Cage
Cage Model: 105-80-42H
Raising Quantity Per House: 33,456 Chickens
________________________________
"Reliable Company"
I asked a lot of suppliers, and after comparing them, LIVI made me choose them because of their excellent company strength. After I received the goods, LIVI assisted me in handling a series of things at the first time, until successfully installed and put into use.
★★★★★5.0Very Satisfied
