| Sizes Available | 1050mm*800mm*420mm |
| Tier | 3 – 8 tiers |
| Rearing Quantity / House | >20,000 birds |
| Applicable Farm | Large Scale Layer Farm |
| Material | International Q235 steel. |
| Life Time | 15 – 20 Years |
| Certificate | ISO9001, CE, SONCAP, PVOC |
Send us email
ends97@zzlivi.comCall us/WhatsApp
+86-13107412960● Broiler equipment could feed the broiler from one day to about 42 days.
● A number of chickens each unit area far exceeds the deep litter system, save large space.
● Completely isolation between manure and chicken decrease the chance of disease through infected feces, and lower mortality rate.
● The two layers are separated which is good for ventilation ans improves the breeding quantity.
● Main components of the broiler cage system consist of hot-dip galvanized sheet and wire material, which is elected for the metal body to avoid corrosion or rust on the cages of chicken farm.

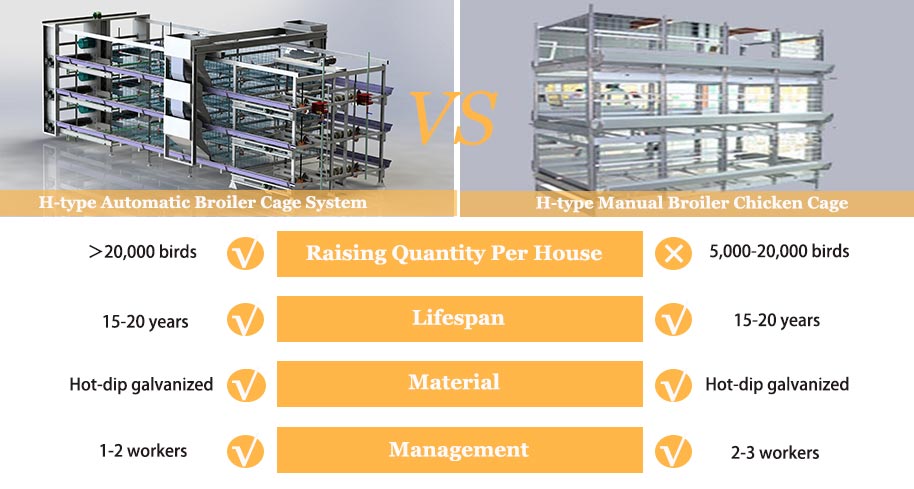

| Cage Type | Specification | Quantity/Set | Tier | Door | Bird/Door |
| Manual Broiler Cage | 1400mm*700mm*430mm | 60 | 3 | 2 | 10 |
| 80 | 4 | 2 | 10 | ||
| Battery Broiler Cage | 1050mm*800mm*420mm | 102 | 3 | 1 | 17 |
| 136 | 4 | 1 | 17 |
High quality accessories & chicken cage design will get better effect and lower maintenance cost.
Broiler Chicken Cage Frame
1. Raw material: U-Shape Steel, which makes the cage frame stand more stable and durable.
2. Specification:35*35mm, thickness:2.0mm
3. International 3mm thick plate rack, U shape design. It can withstand 350-kilogram pressure. Plus double galvanized technique with a 15-20 years lifespan.
Broiler Chicken Cage Mesh
1.Raw material: International Q235 steel, good elasticity,no deformation.
2.We do the welding first, then do the hot dipped galvanized treatment. Smooth and clean surface, with advantages of anti-corrosion, anti-acid and alkaline as well as anti-agingperformance. Durable to bear heavy broilers.
Broiler Cage Feed Trough
1. Raw material: HMW-HDPE
2.White color (White one is the best quality. Green or Black one is Not good)
3.Big slope design to prevent feed waste: compared with the slope or middle design of other suppliers(8,9,10), Our 8,9,13cm design could avoid splashing once chicken eat.

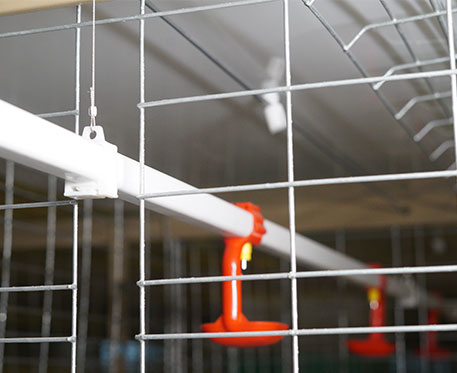

Adjustable Broiler Cage Waterline
1. Raw material: 304 stainless steel, 5mm.
2. It has high abrasion resistance, never get corrosive, never leak water.
3. It’s not easy to get blocked and produce scale incrustation.
4. Quite simple to drink water once chicken touch it.

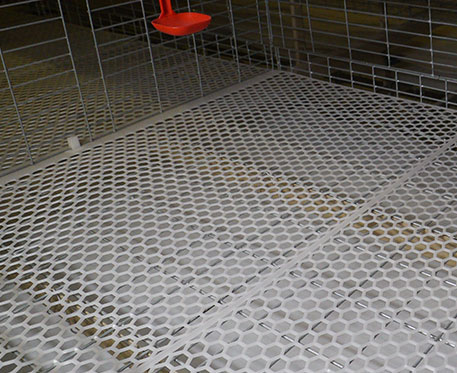

Broiler Chiken Cage Mats
1. Raw material: PVC
2. The shape of the mat is hexagonal and the size is suitable.
3. It provides a safe standing environment for the chickens, the chicken feet will not fall off but the chicken manure can fall on the manure removal belt.

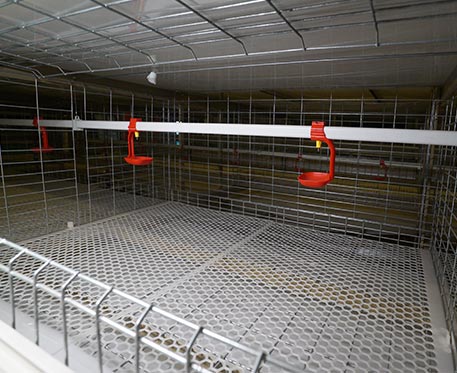

Enough Broiler Cage Space
1. Sufficient movement area for chickens: around 500cm² (Other suppliers do 380cm²~417cm²)
2. Making the broiler chickens have a comfortable living environment.
3. It will help increase meat broiler production, and reduce the chicken mortality.
Full Automatic Supporting System——automatic feeding,drinking, manure cleaning, and control environment.

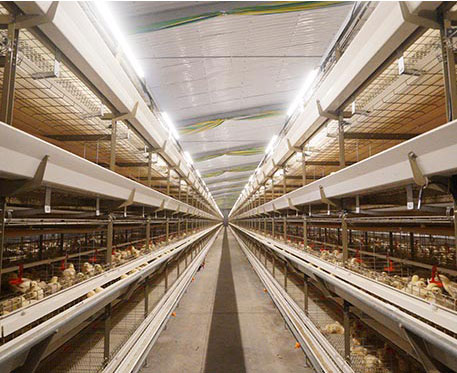

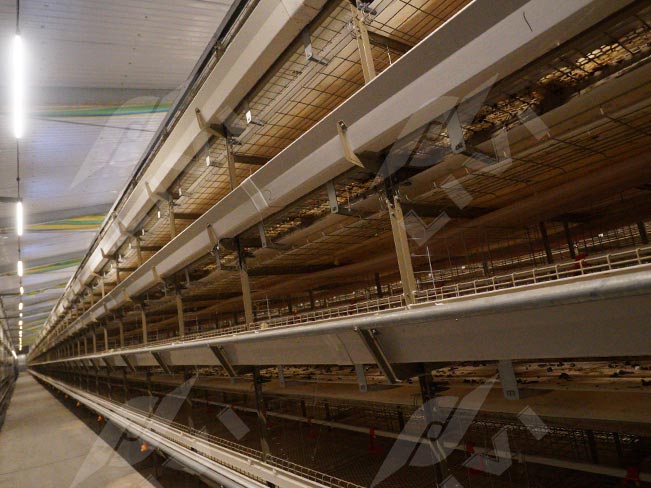

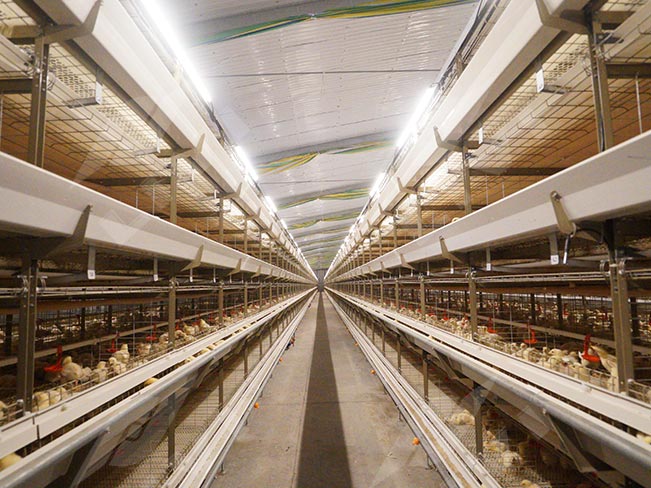

Automatic Broiler Cage System
Used for the broiler from
one day to about 42 days

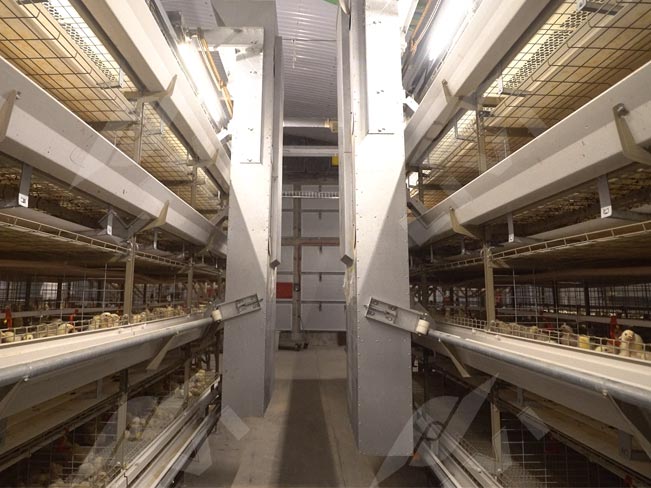

Automatic Feeding System
Fully automated feed transportation
process everyday

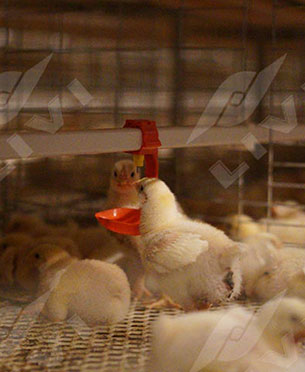

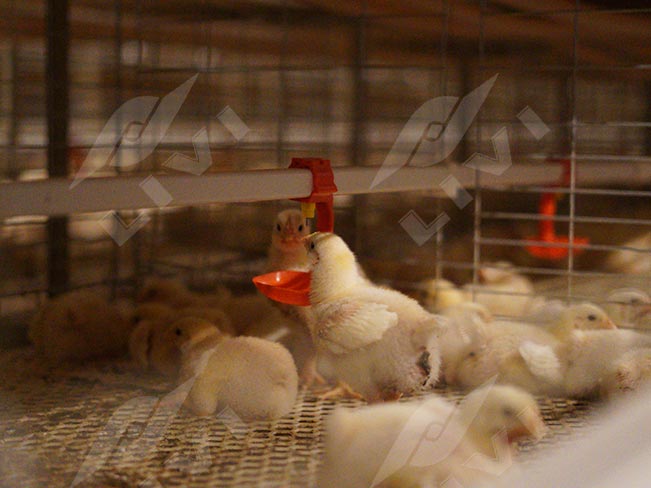

Automatic Drinking System
Adjustable waterline for broilers
Clean and stable water to broiler farm

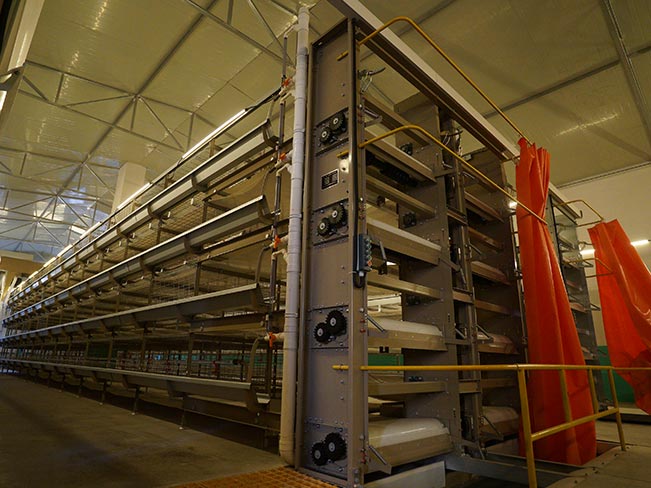

Automatic Manure Cleaning System
Daily thoroughly clean the feces
Better chicken shed environment
Enviroment Control System
keep indoor humidity
Aviod air pollution
Broiler Automatic Chicken Farm
Saving manpower & resources
Realize intensive poultry farming
We provide not only poultry equipment, but also professional solutions.
Project Site: Pakistan
Type: H Type Layer Chicken Cage
Cage Model: 120-65-43H
Raising Quantity Per House: 50,000 Chickens
________________________________
"Reliable Company"
LIVI Machinery is a reliable Chinese company. They helped me a lot and I appreciate it.
★★★★★5.0Very Satisfied
Project Site: Zambia
Type: A Type Layer Chicken Cage
Cage Model: 195-45-41A
Raising Quantity Per House: 20,160 Chickens
________________________________
"Reliable Company"
I'm new in chicken farming business, LIVI provide me good quality cages & free chicken house design & detailed farm solutions to help me start with 20,000 birds.
★★★★★5.0Very Satisfied
Project Site: Zimbabwe
Type: Broiler Ground Feeding System
Raising Quantity Per House: 30,000 Chickens
________________________________
"Reliable Company"
LIVI recommended the deepp litter system for broilers for me based on my chicken house n my specific needs. After a period of use, I am very satisfied.
★★★★★5.0Very Satisfied
Project Site: Ghana
Type: H Type Broiler Chicken Cage
Cage Model: 105-80-42H
Raising Quantity Per House: 33,456 Chickens
________________________________
"Reliable Company"
I asked a lot of suppliers, and after comparing them, LIVI made me choose them because of their excellent company strength. After I received the goods, LIVI assisted me in handling a series of things at the first time, until successfully installed and put into use.
★★★★★5.0Very Satisfied
